Flashing prealigner firmware #

1. Download #

Download installer for STM32CubeProgrammer from here.

2. Run installer #

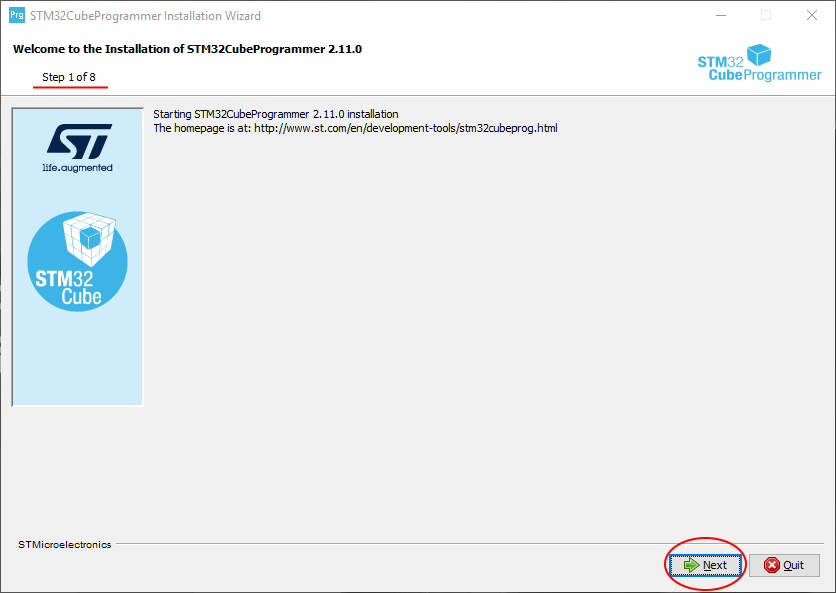

Step 1 of 8 #

  • Click Next image

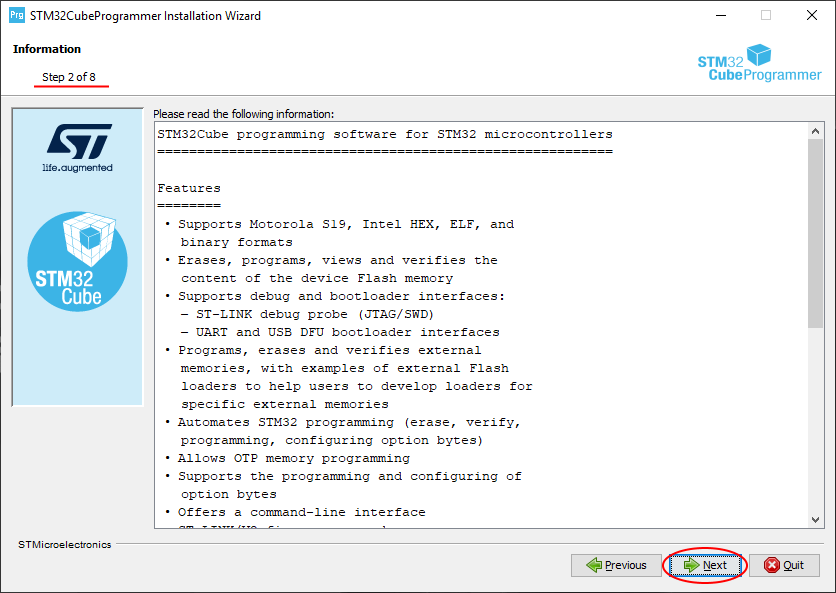

Step 2 of 8 #

  • Click Next image

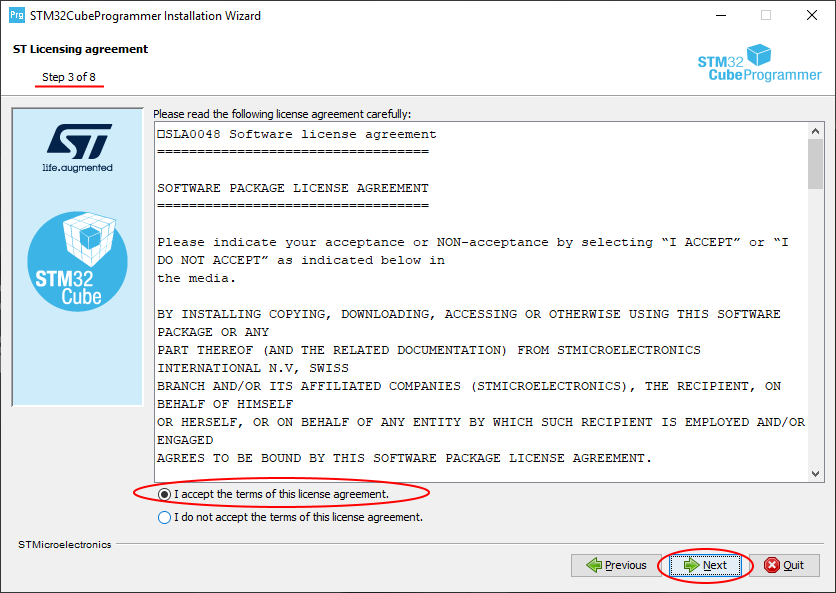

Step 3 of 8 #

  • Click I accept the terms of the ….
  • Click Next image

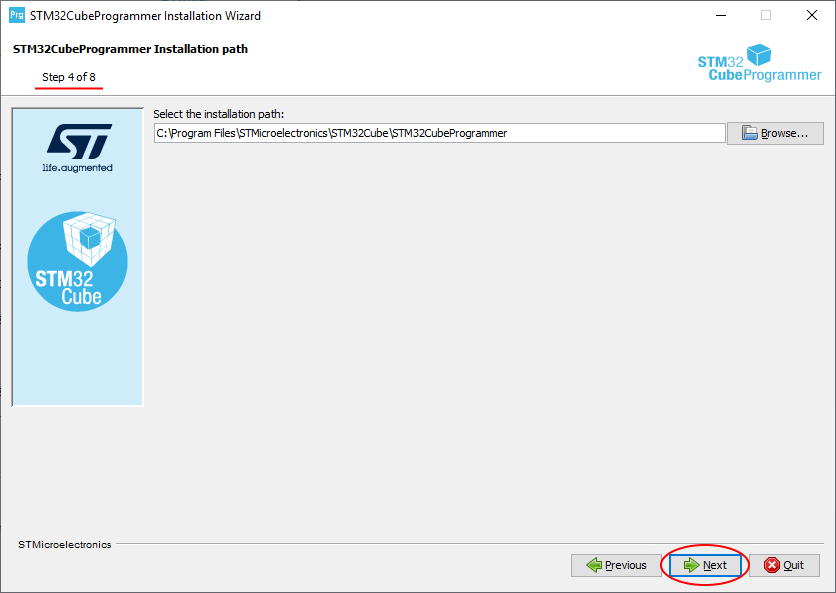

Step 4 of 8 #

  • Click Next image

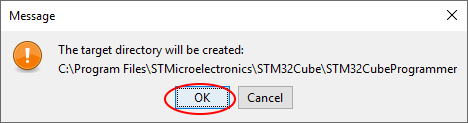

  • Click OK

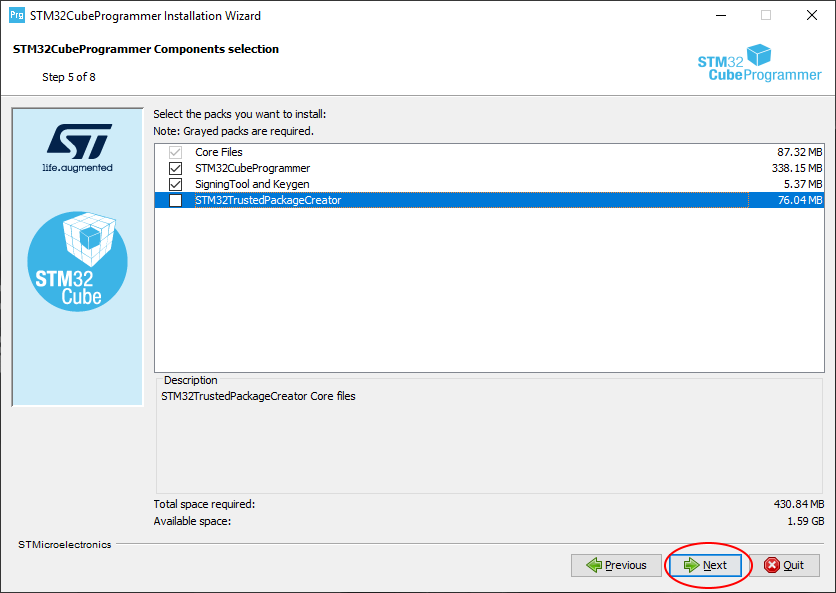

Step 5 of 8 #

  • Click Next image

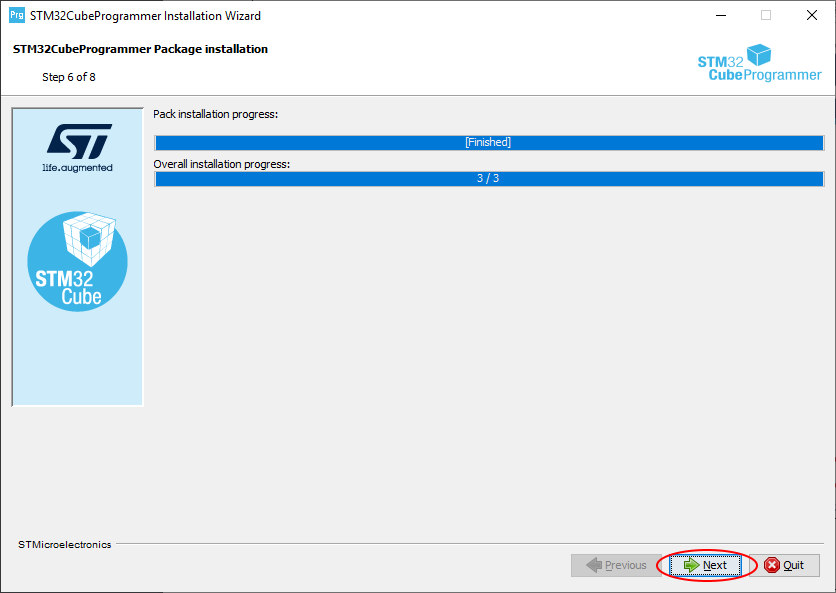

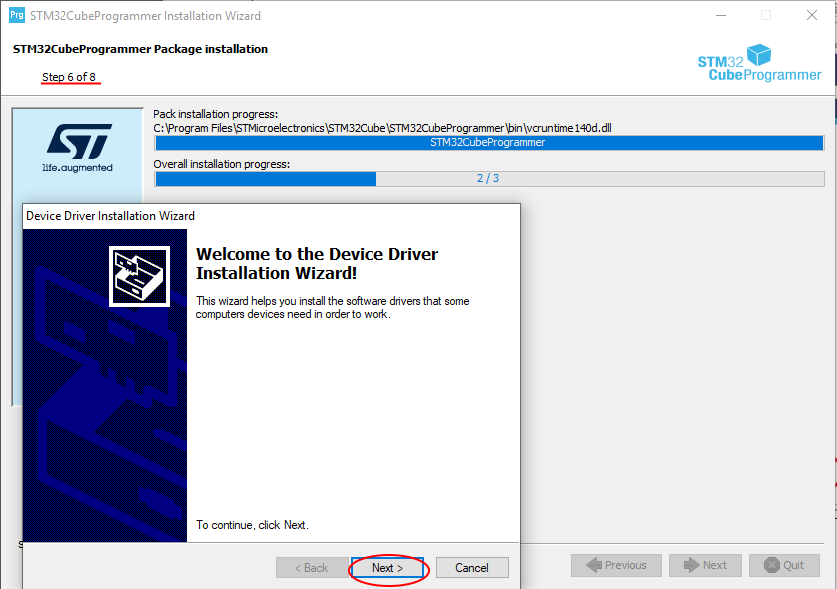

Step 6 of 8 #

  • Click Next

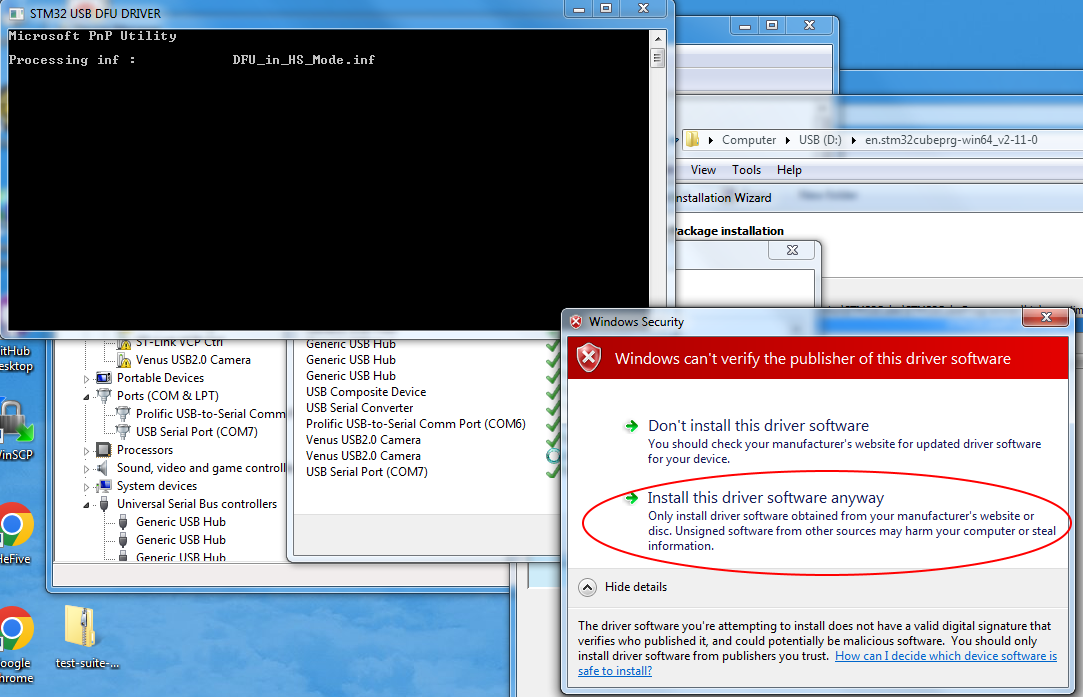

  • If this Windows Security warning appears: Click Install this driver software anyway .. image

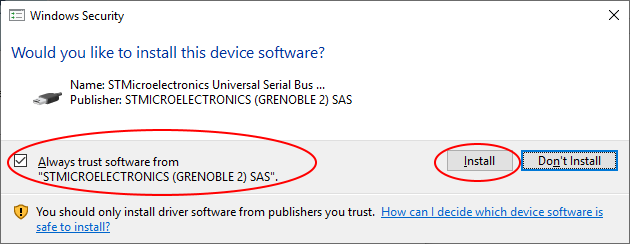

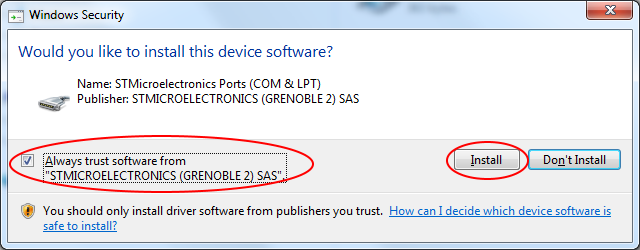

  • Check off on Always trust software … & Click Install image
  • Repeat this for all drivers from STMICROELECTRONICS image

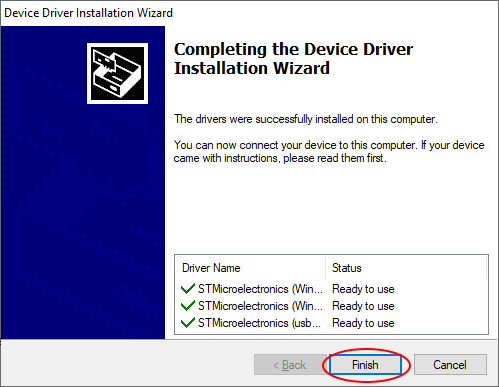

  • Click Finish
  • Click Next image

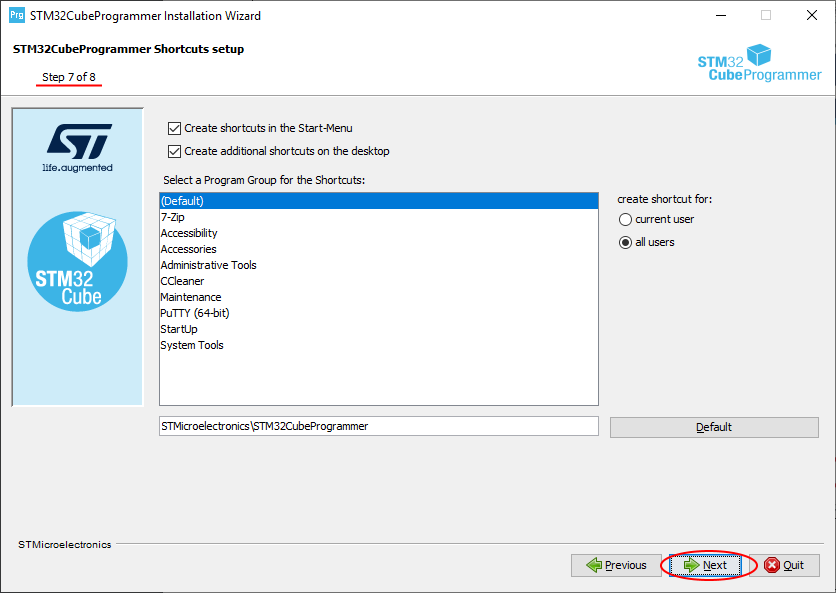

Step 7 of 8 #

  • Click Next

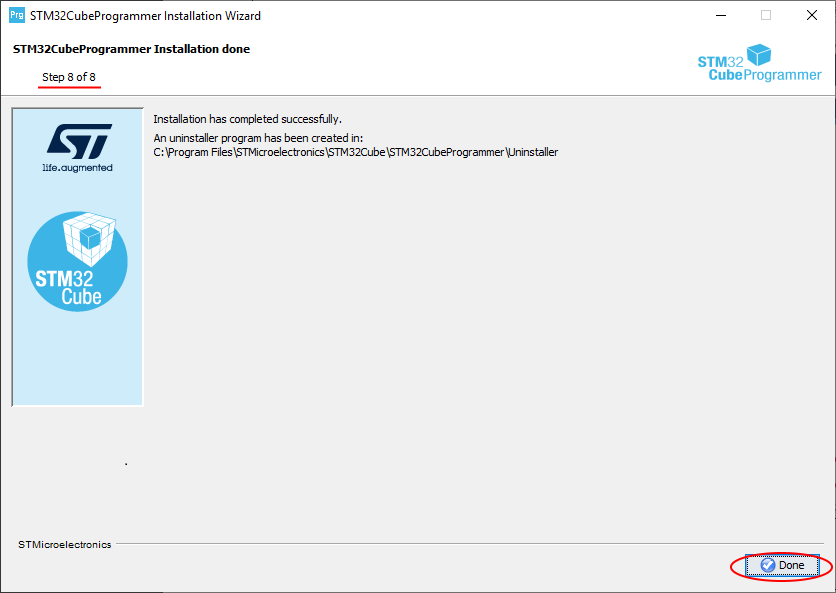

Step 8 of 8 #

  • Click Done

3. Connect programmer #

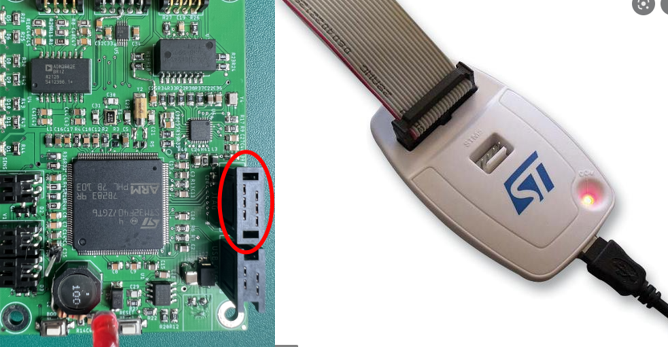

Connect ST-Link programmer USB PC image

4. Flash device #

Flash with STM32CubeProgrammer

  1. Run STM32CubeProgrammer*

  2. Select STLINK

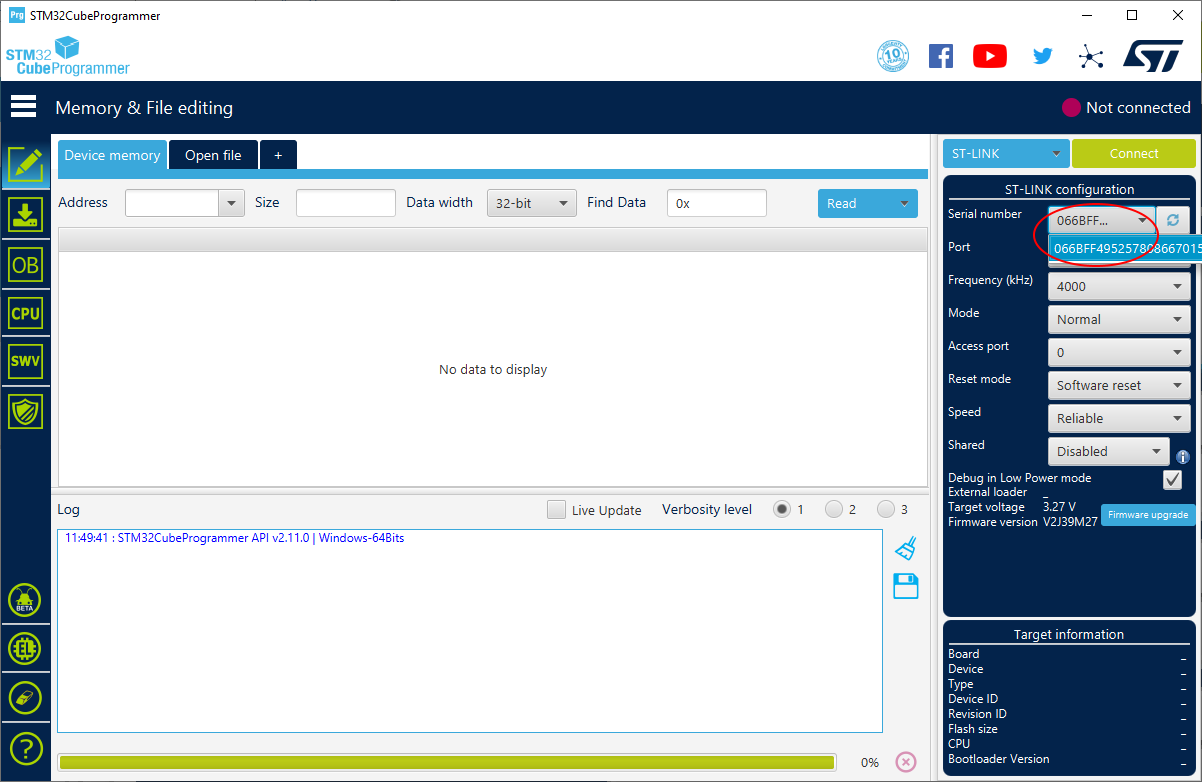

    Click reload button image

  3. If device is found serial number will be displayed

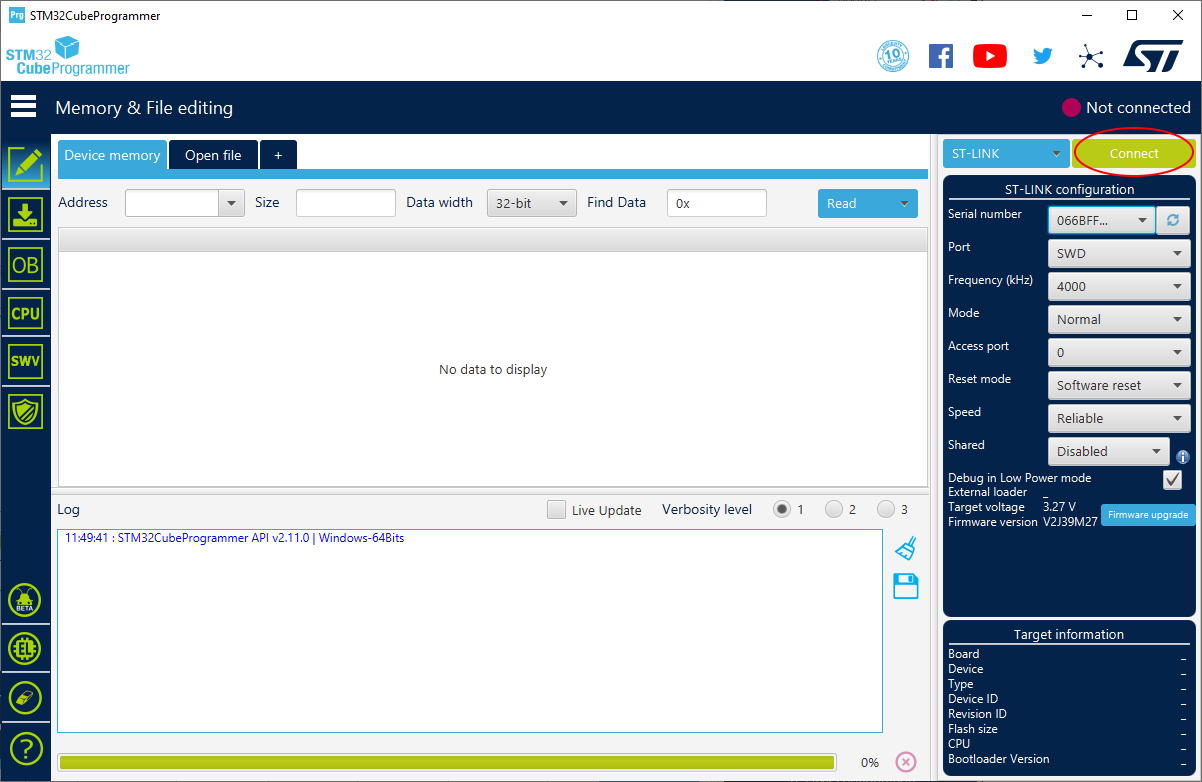

  4. Click Connect

    If error “No debug probe detected.” pops up,
    click Ok and check Connect ST-Link programmer USB PC

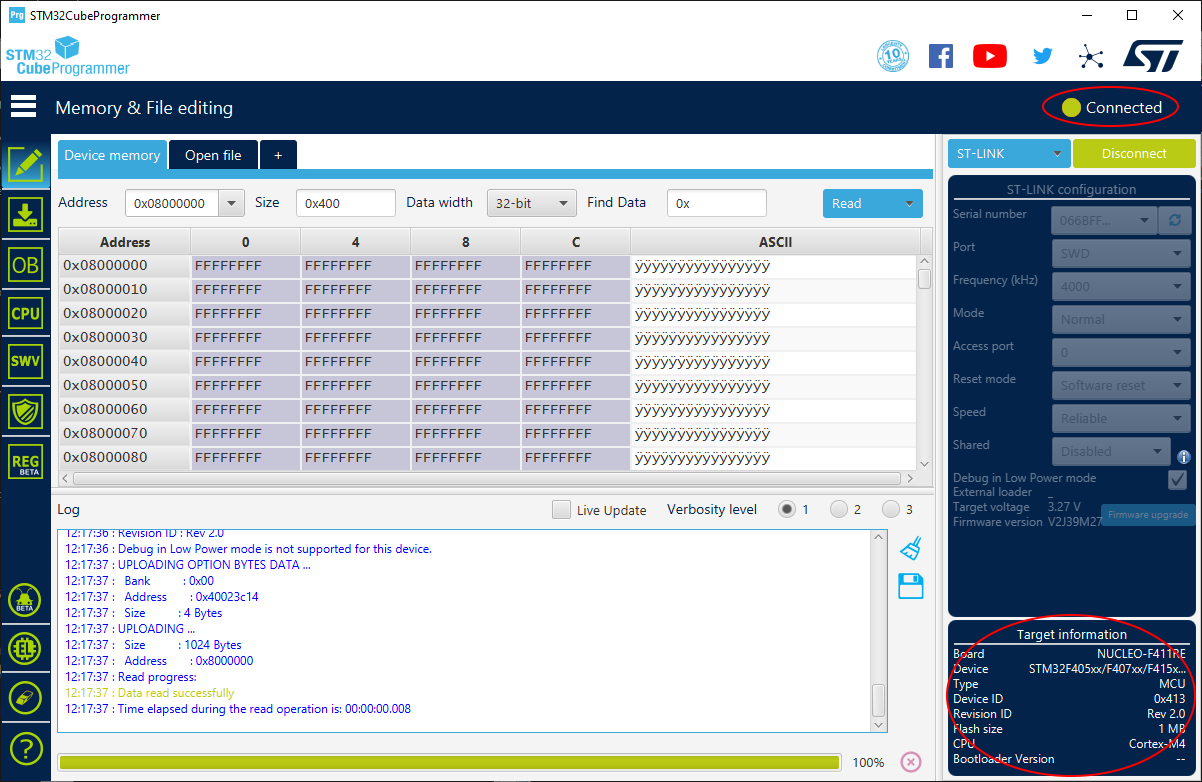

  5. Successful connection will display Connected and Target information

  6. Switch to Erasing & Programming panel

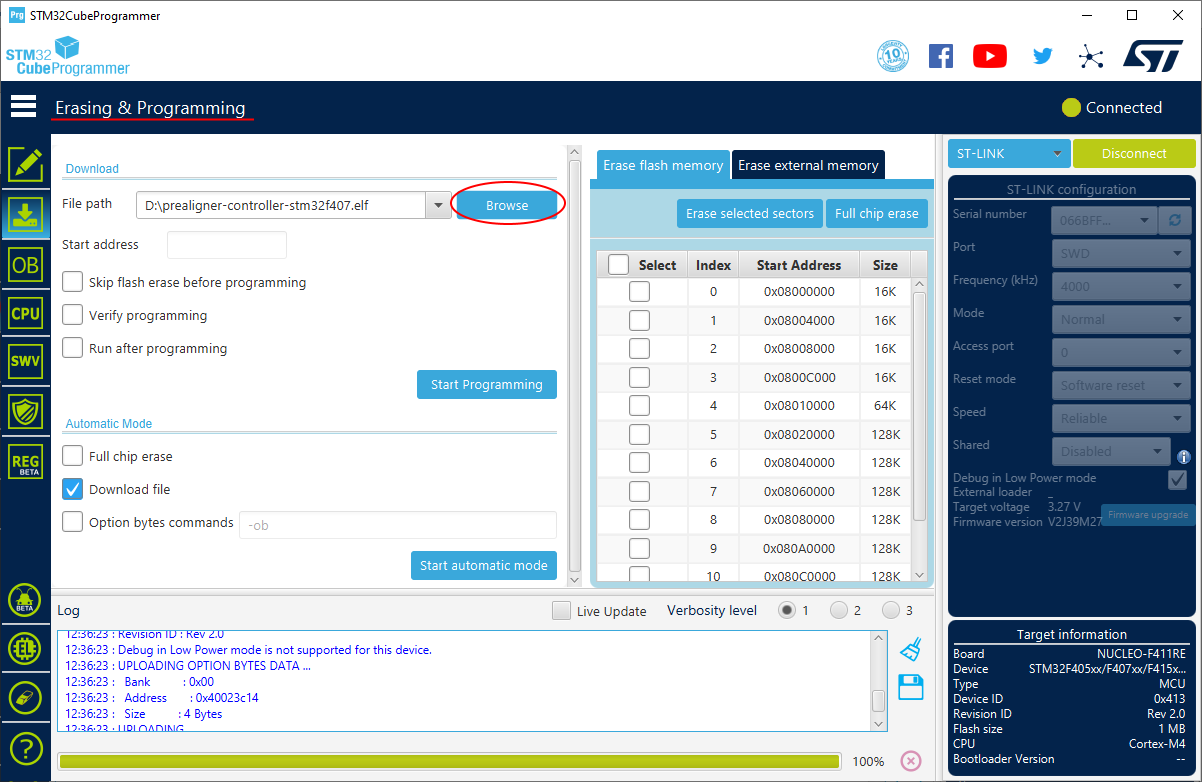

  7. Click on Browse and select firmware file

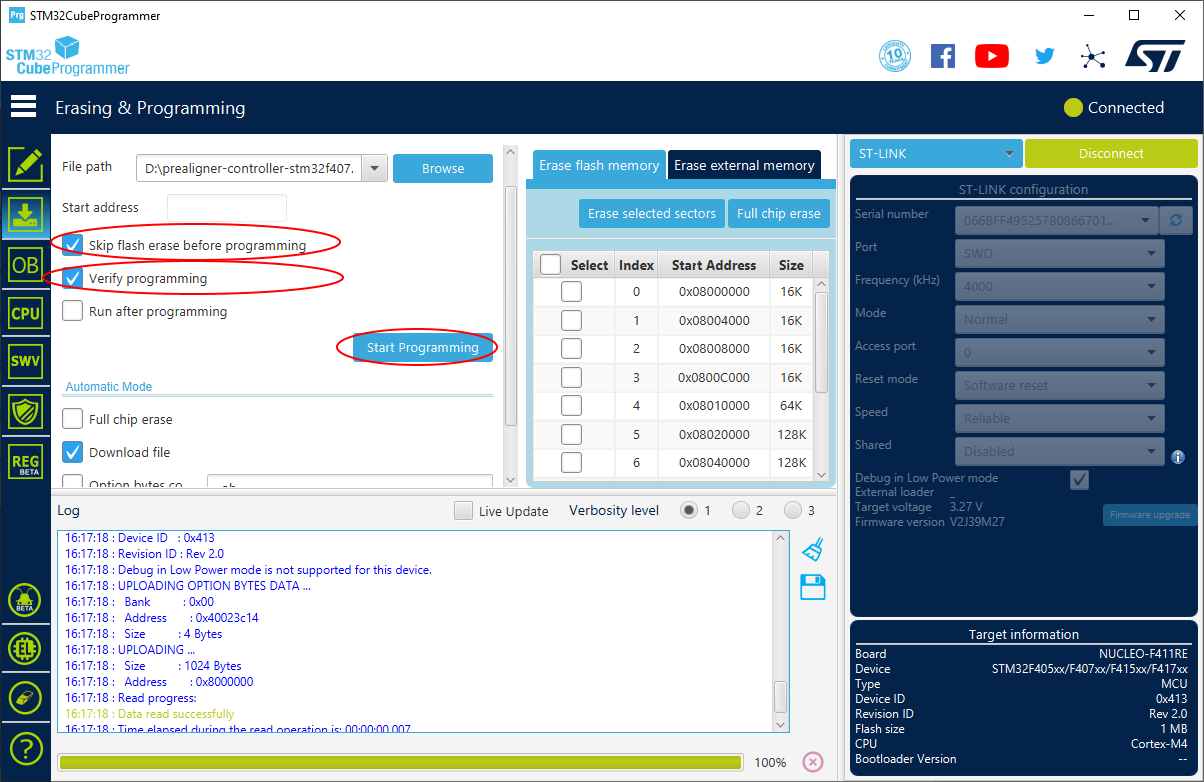

  8. Put a mark on Skip flash erase before programming
    Put a mark on Verify programming
    Click on Start Programming and wait

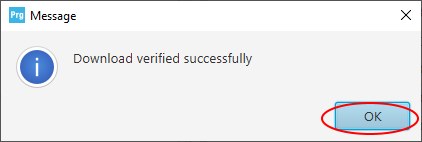

  9. Successful verification will display this message click OK

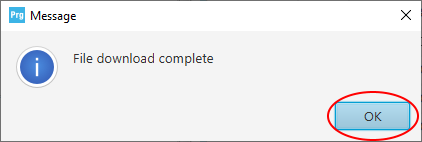

  10. Download complete click OK

  11. Disconnect from ST-LINK click Disconnect

  12. Close STM32CubeProgrammer

  13. Power cycle (restart) Prealigner controller

5. Prepare PuTTY connection #

  1. Power cycle (restart) Prealigner controller

  2. Connect Prealigner controller to PC

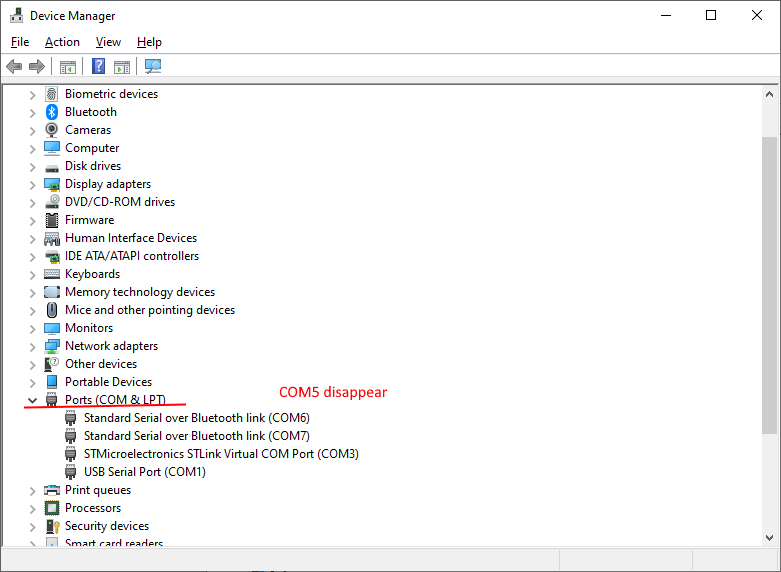

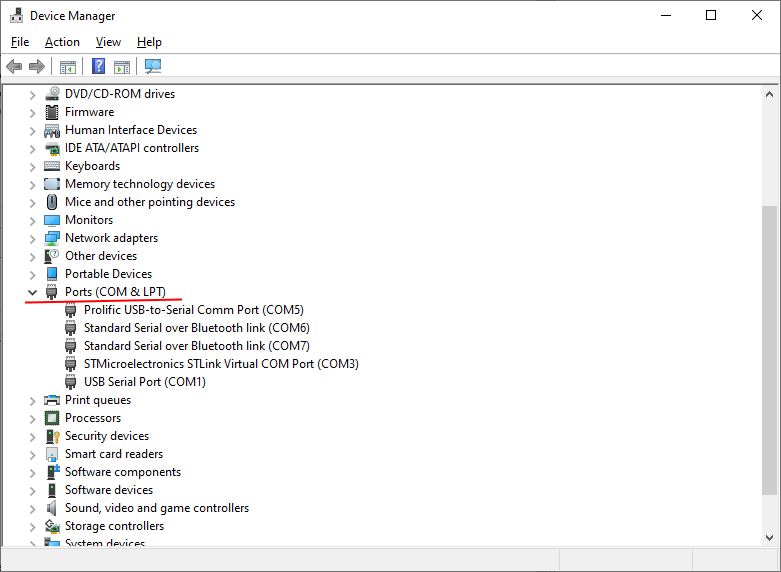

  3. Open Windows Device Manager

  4. Expand Ports (COM & LPT)

  5. Disconnect Prealigner controller from PC and memorize which port disappear

  6. Connect Prealigner controller to PC and verify that (COM ) port will be listed again*

  7. Run PuTTY

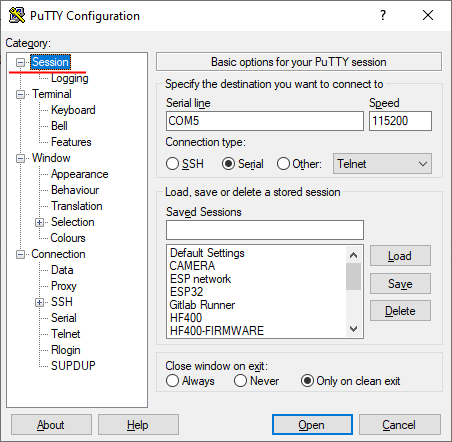

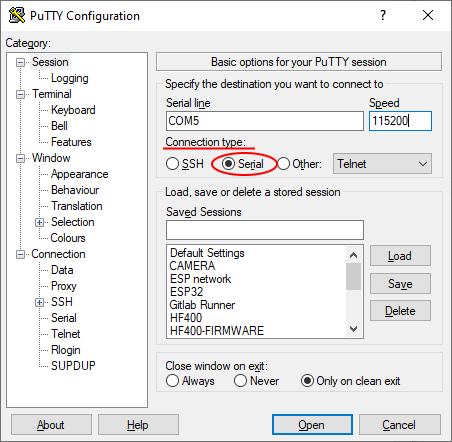

  8. Select Connection type Serial

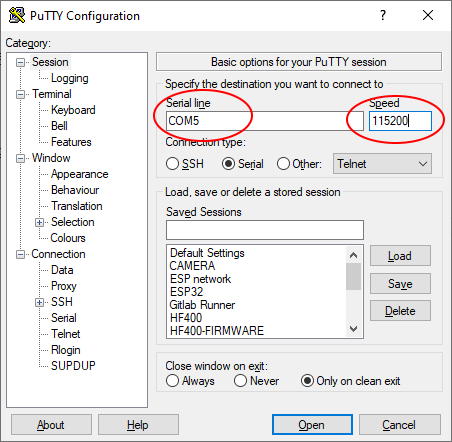

  9. Enter memorized Serial line COMx and Speed 115200

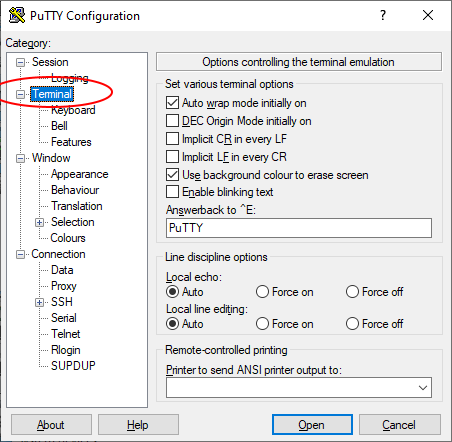

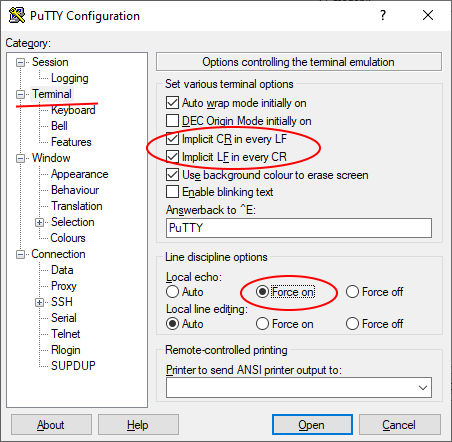

  10. Select Terminal panel

  11. Put check as shown on the picture

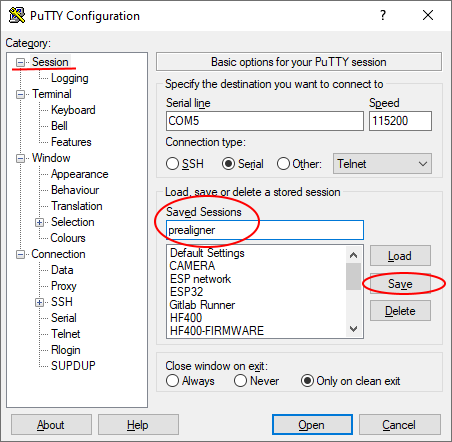

  12. Select Session panel

  13. Type prealigner in Saved Sessions and click Save

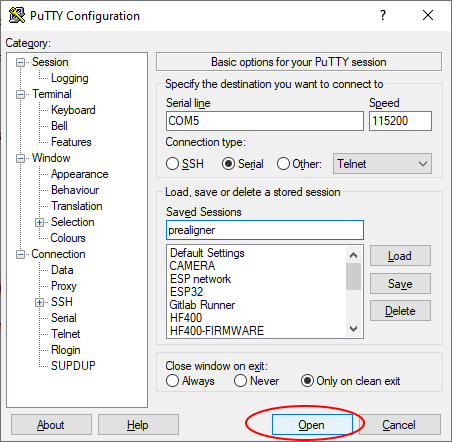

  14. Click Open to establish Connection with Prealigner

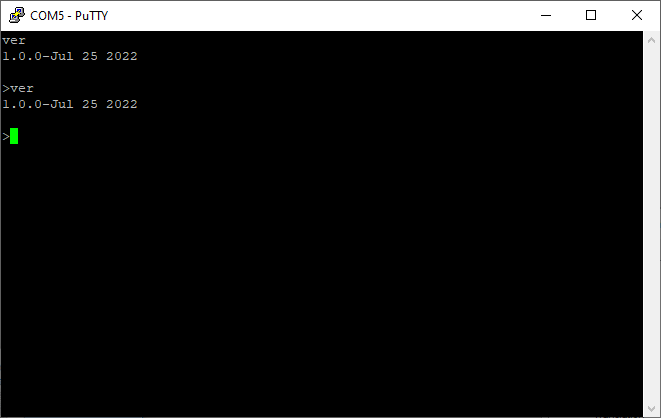

  15. Verify connection type VER in terminal

Note: If prealigner replies with ?, type ver again in terminal.
