Introduction #

This manual describes the Robot Control Center (RCC) application for use with He-Five Robots.

It gives control over the following Robot functions:

• Moving the Robot.
• Control of different grippers.
• Robot configuration.
• Creation and management of parameter sets
  (via-points, stations, Robot programs and other application specifics).
• Testing parameter sets.
• Creation of robot programs.
• Direct Robot communication via command line.

User Interface Overview #

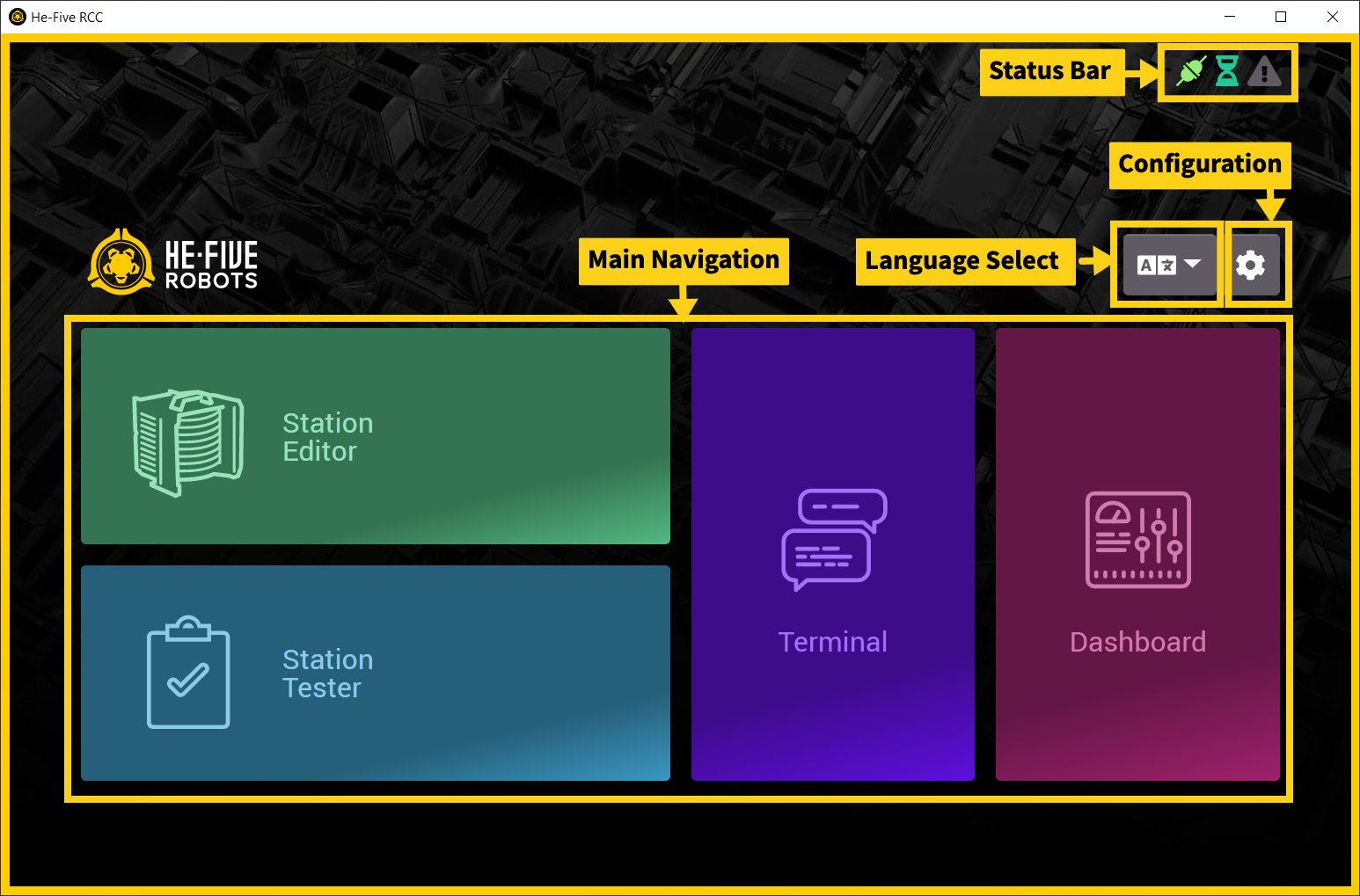

Home Screen #

NOTE: The main panel depends on the selected Robot type.

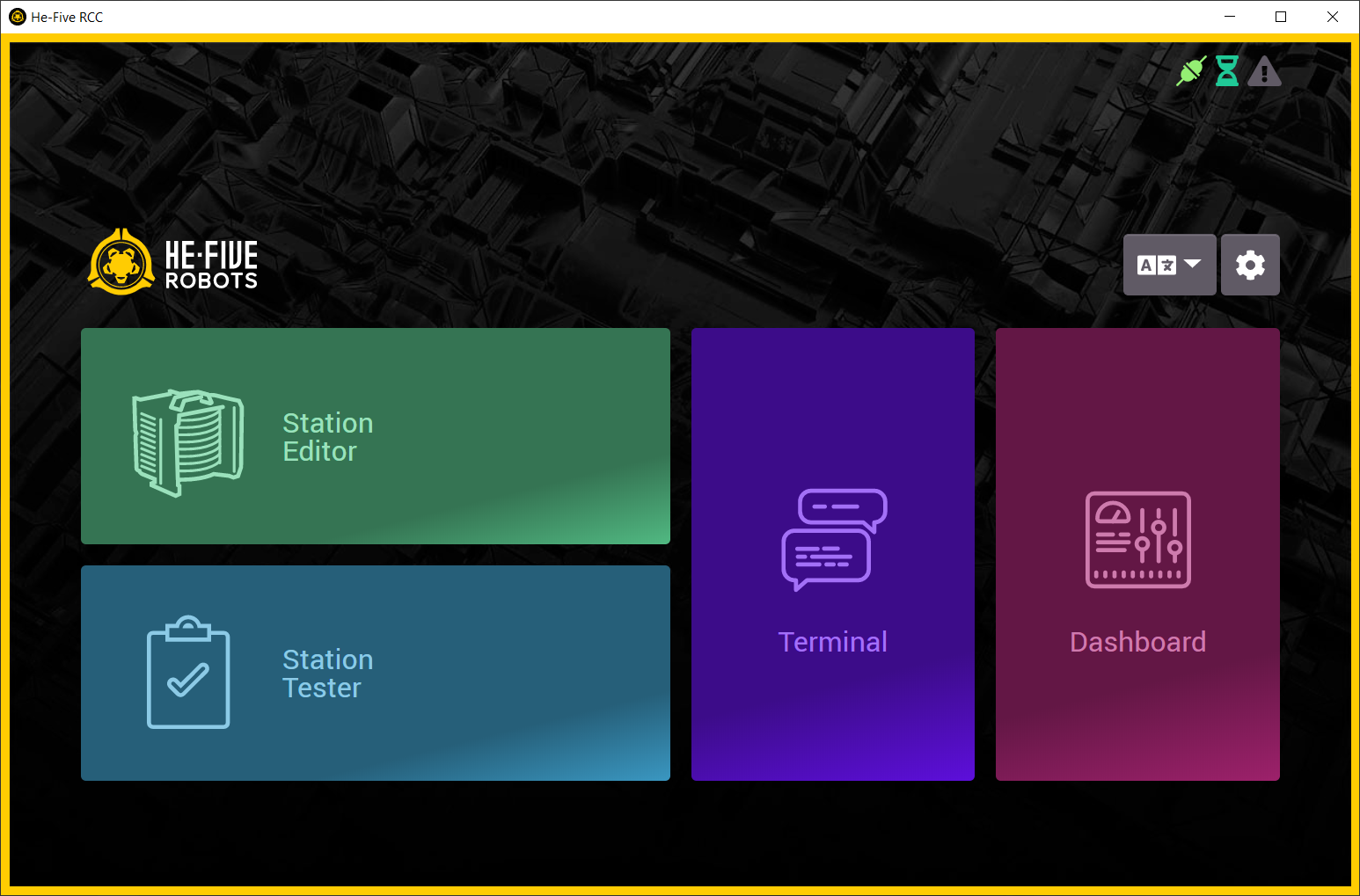

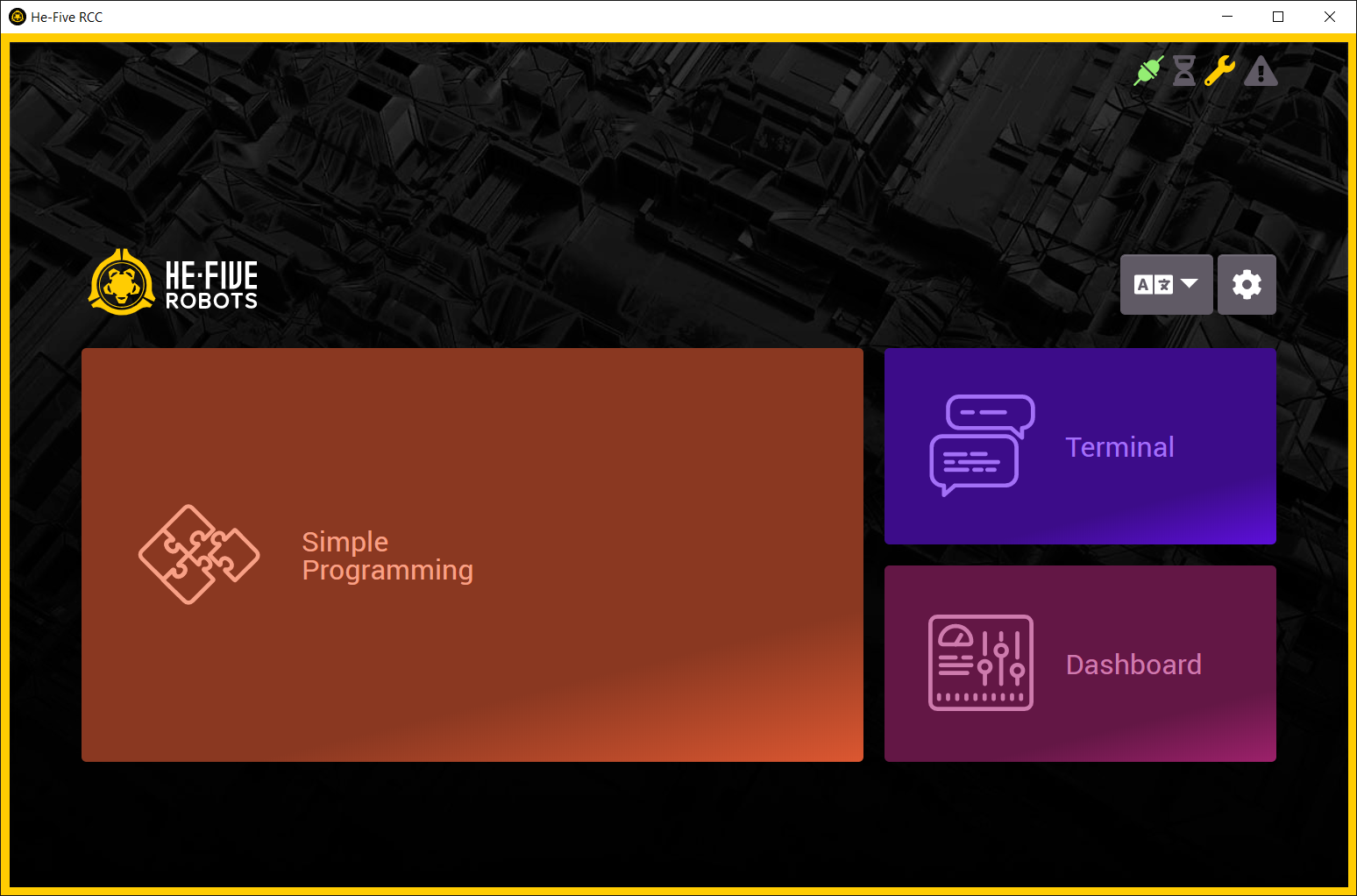

Wafer Transfer Robot (Type 1)	Pick-and-Place Robot (Type 3)

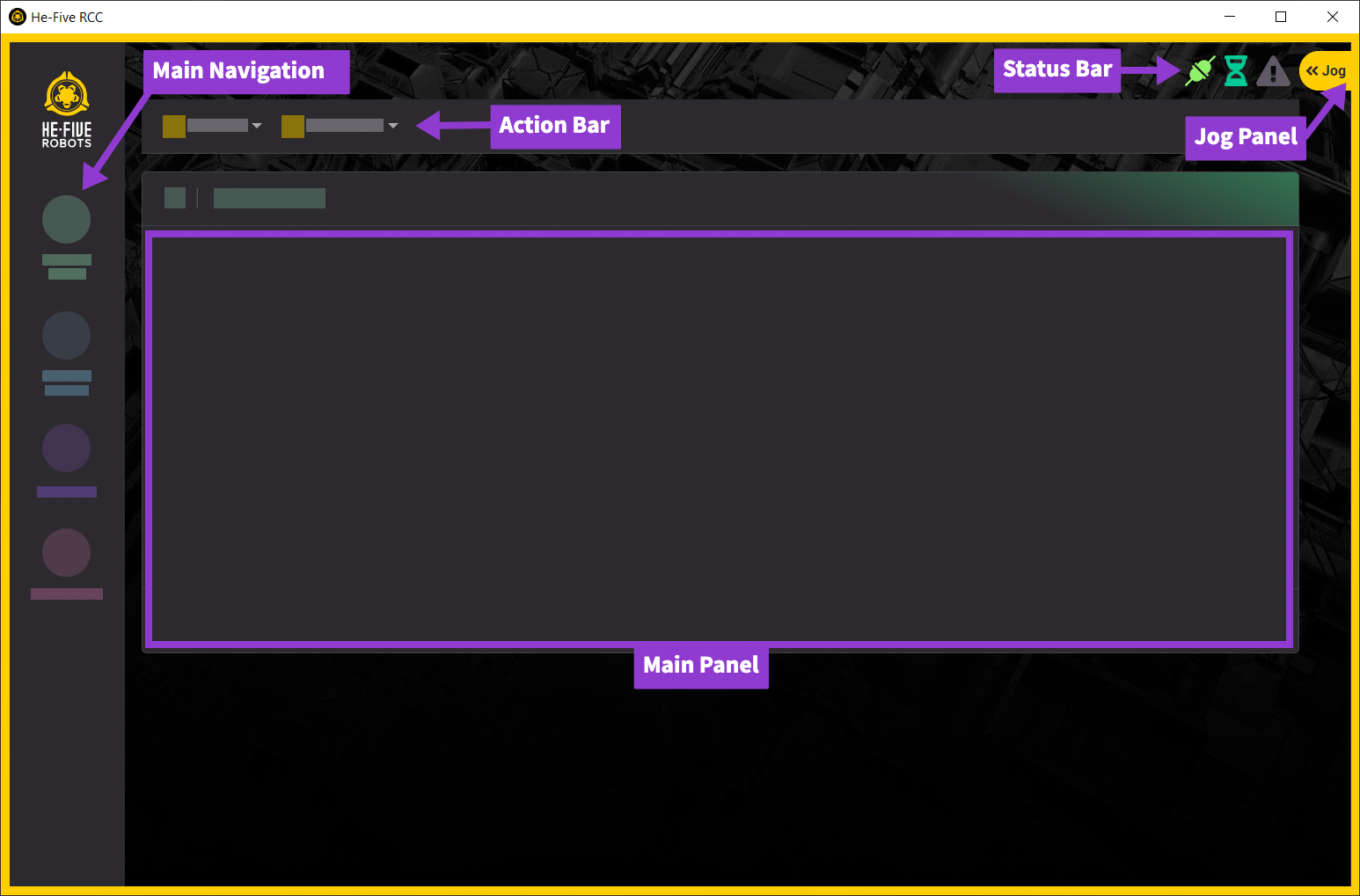

Main Screen #

Every screen has access to the Main Navigation Menu and Status Bar.
Some screens contain an Action Bar and Jog Panel.

Status Bar #

Connection Status #

Icon	Description
	Device not connected RCC is running but is not currently connected to Robot/Device. Check configuration.
	Device connected RCC is running and connected to Robot/Device.

Robot Status #

Icon	Description
	Idle Robot is awaiting instruction.
	Busy Robot is busy / in motion.

Misc Status #

Icon	Description
	Service Mode Service mode enabled for use by qualified technicians.

Warning Status #

Icon	Description
	Warning Robot warnings and errors. See dashboard for details.

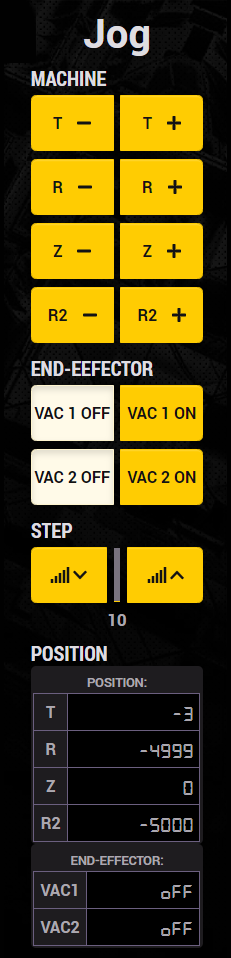

Jog Panel #

The Jog Panel (when available) can be opened by pressing « Jog in the top right corner of the screen. This panel can also be locked onto the screen.

In order to perform Jog operations on a specific axis, your Robot must have its Motors turned On.

This can be done one of three ways:

• In the Action Bar select Robot > Turn Motors On
• On the Dashboard Screen toggle Motors on in the Options panel.
• On the Terminal Screen type command SERVOON.

Make sure that Homing is physically possible before performing HOME operation.

Jog Panel give you ability to move a specific robot axis a set amount of steps, and to monitor position and end-effector status.
